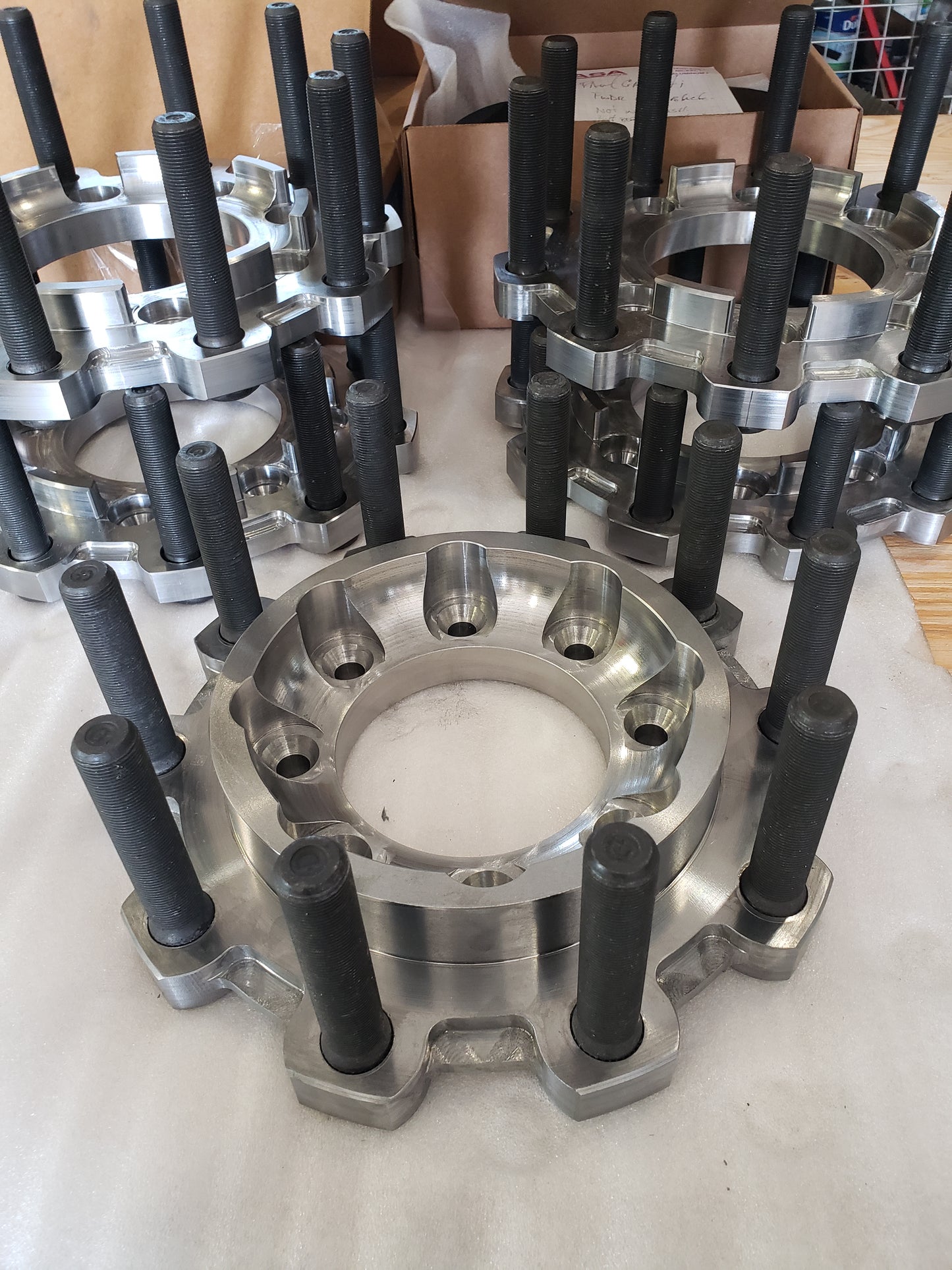

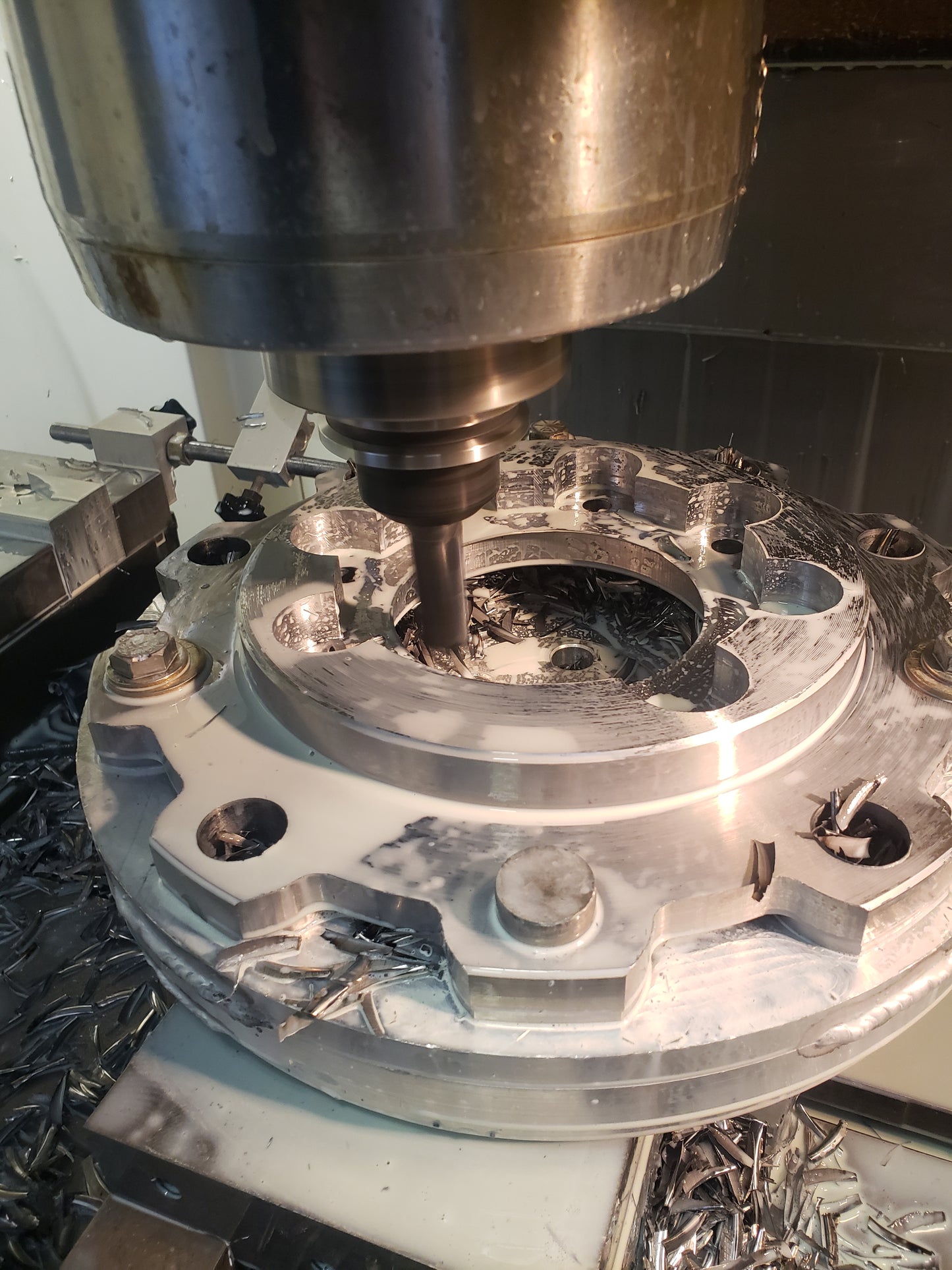

Steel Wheel Adapter 8 to 10 or 10 to 10 bolt to fit Ford, GMC, Ram Made to order for you specific requirements Custom sizes available
12.75" OD with 1" bolt flange and 0.86" hub center height for front axel position or super single
1.5" hub center height for rear wheel position to accommodate dual wheels
bolt pattern 10x 285.75 mm hub pilot.

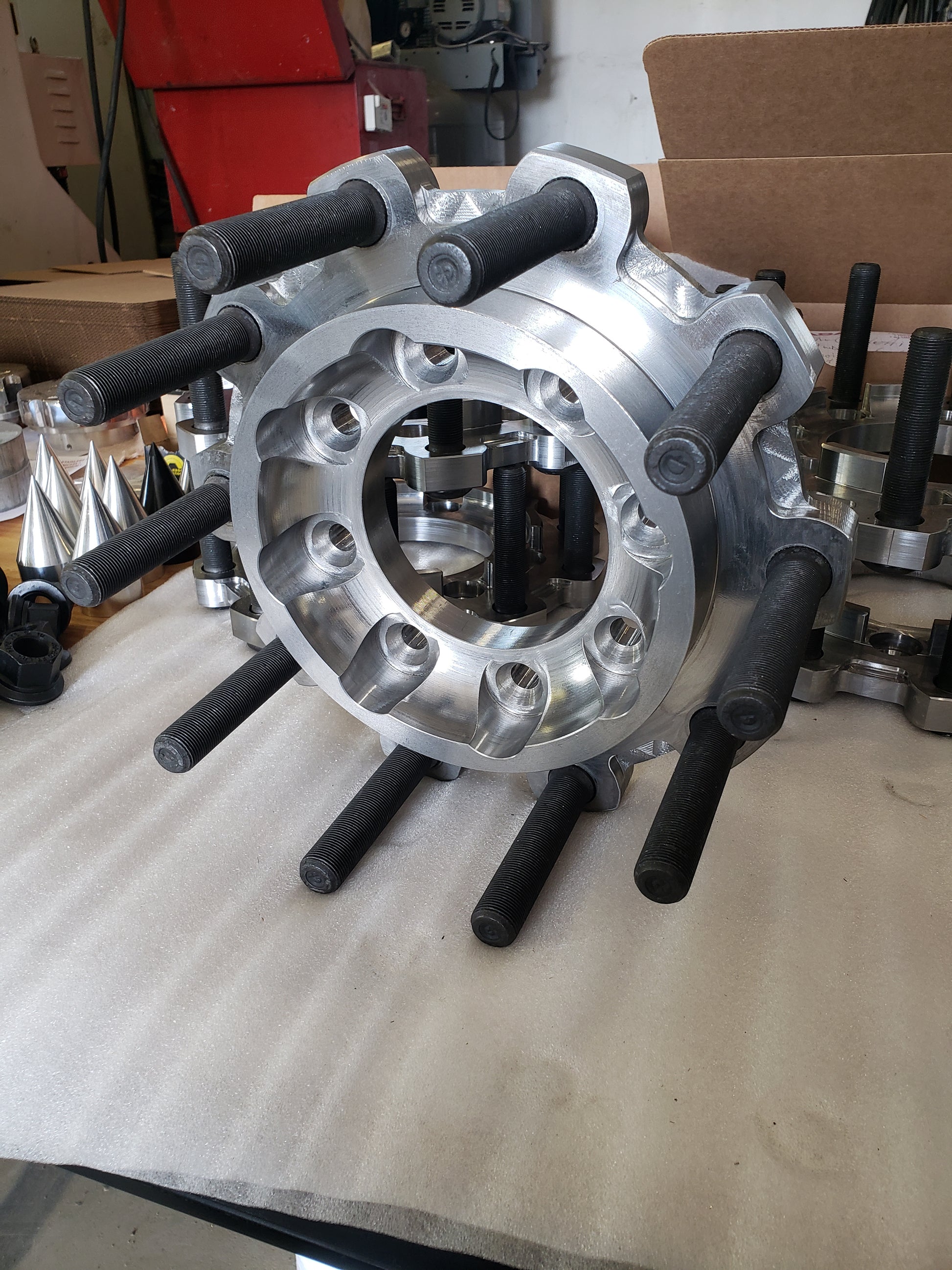

adapters include studs and 33 mm lug nuts
8 bolt and 10 bolt patterns for most one ton and up trucks available made to order

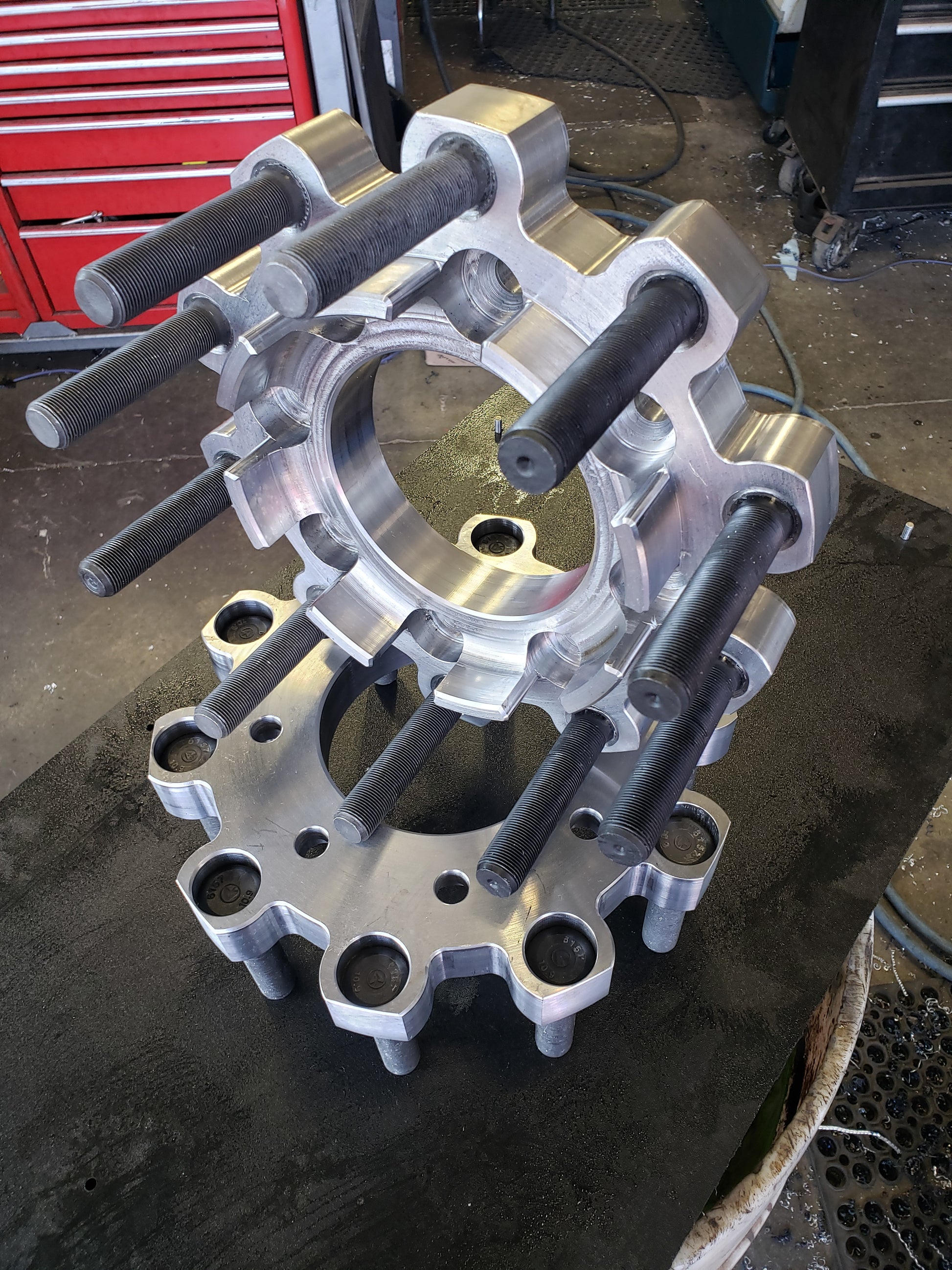

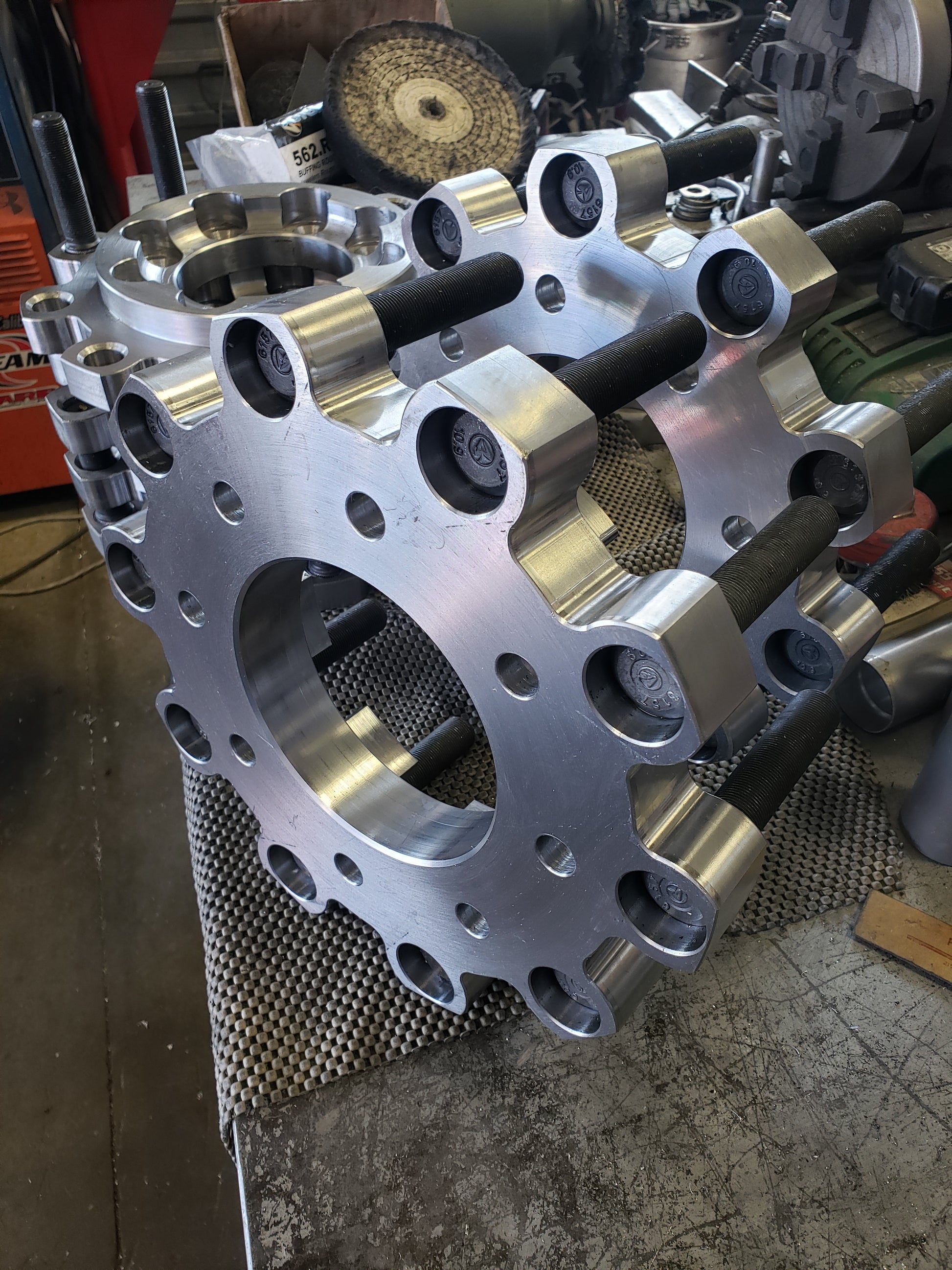

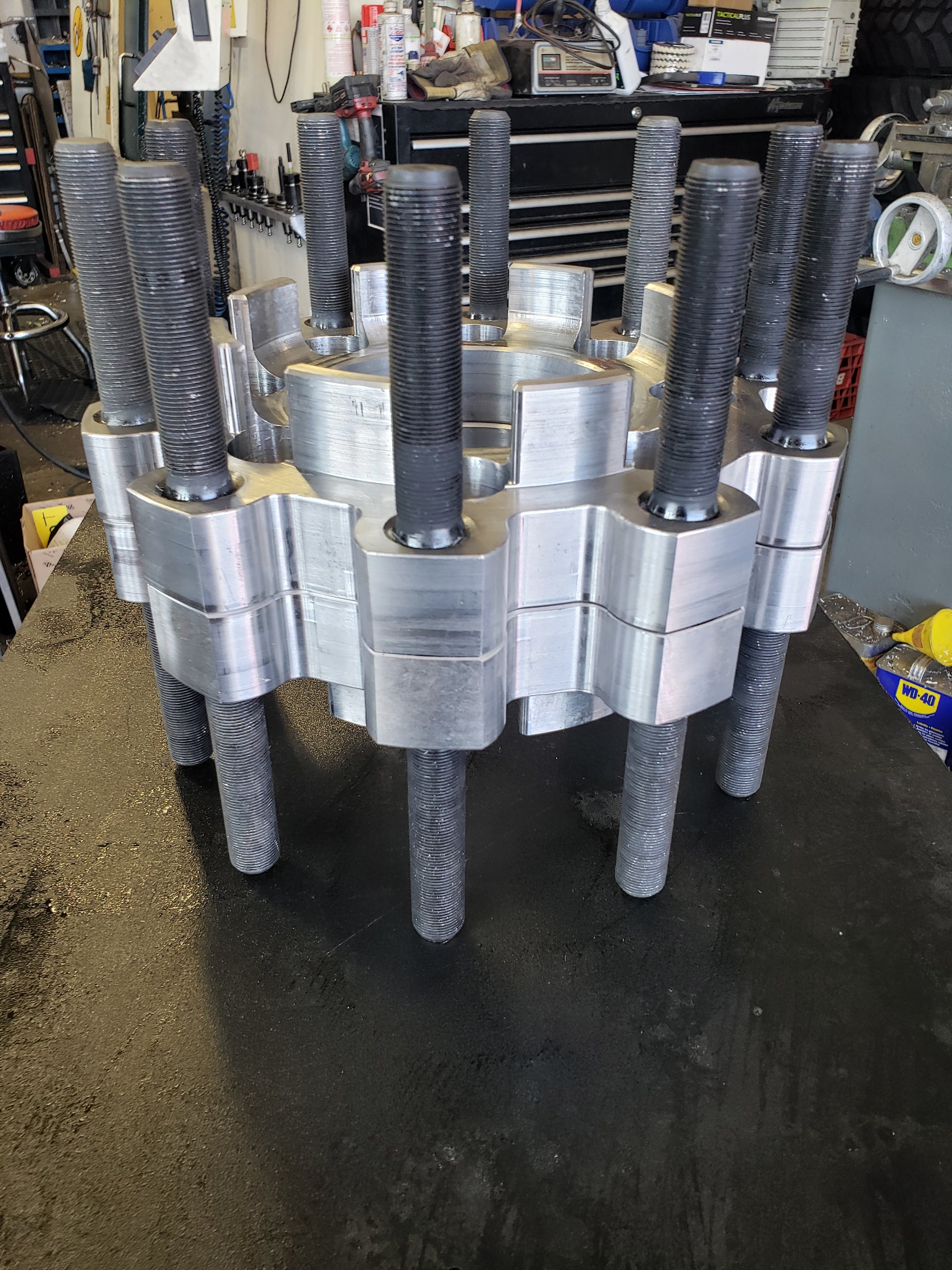

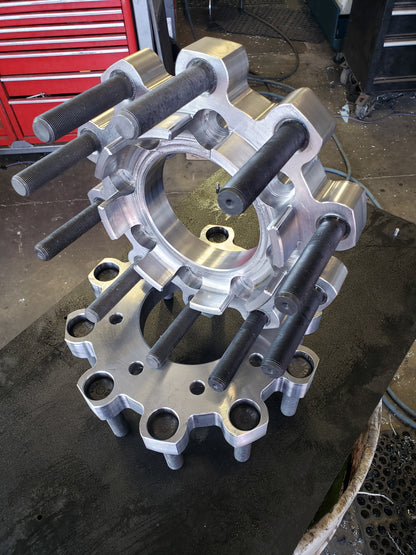

2019+ RAM 3500 - 8 TO 10 LUG WHEEL ADAPTERS 8X200 MM TO 10X285.75 MM STEEL Vehicle Bolt Pattern: 8x200 MM Vehicle Hub Bore: 141 MM Wheel Bolt Pattern: 8x200 MM Wheel Bore: 220.1MM Wheel Bolt Pattern: 10x285.75 MM Thread Pitch: 22 x 1.5 MM Thickness: 1" - 4" Wheel Lip: 0.80" / Rear 1.45" Hub center protrusion: 0.8" front / 1.45" For Dual Wheels Material : 1018 Steel Hardware: 10.9 Grade Finish: Raw Steel uncoated - Powder Coating Available on request Pressed In Studs & Lug Nuts Included

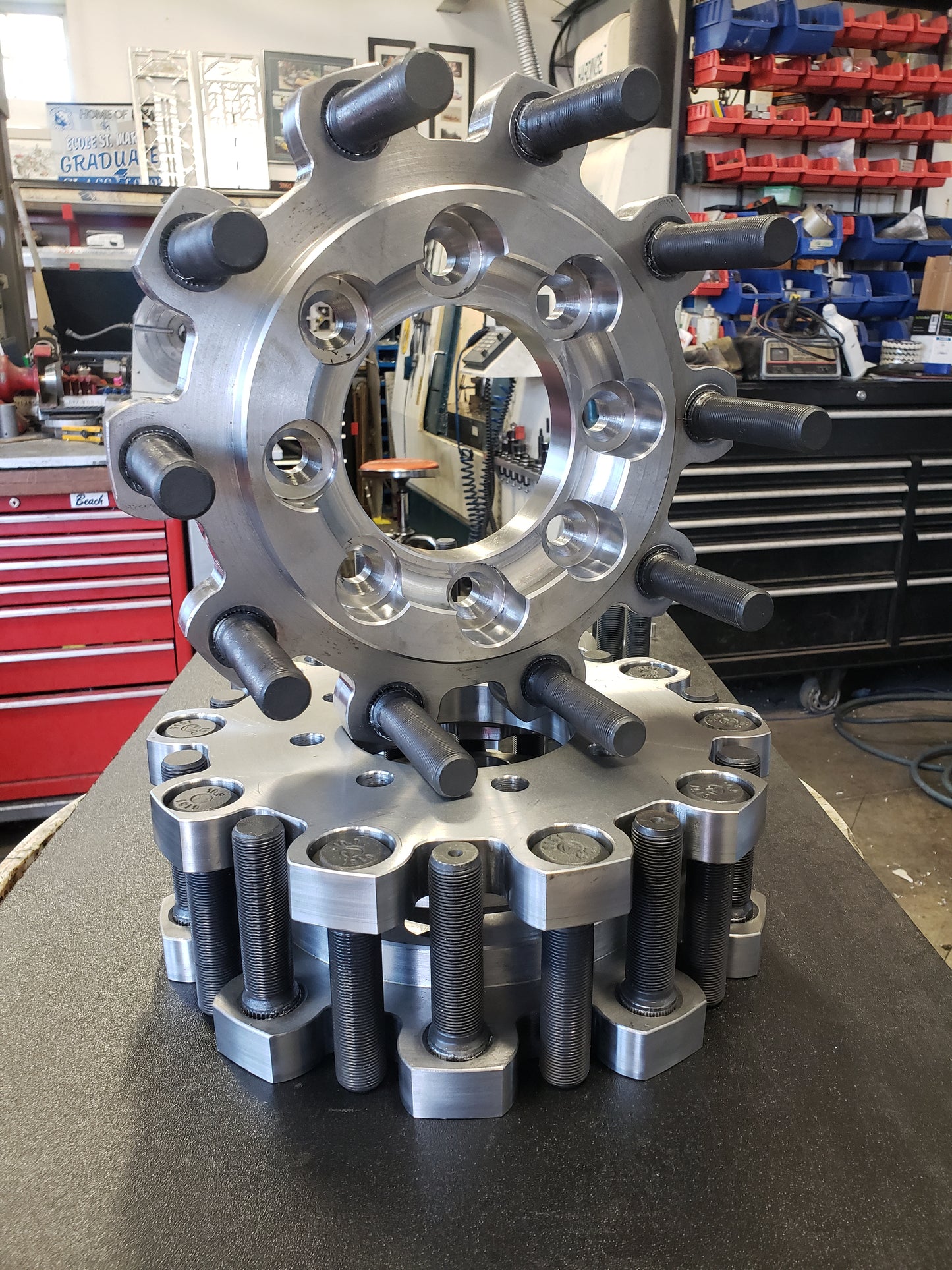

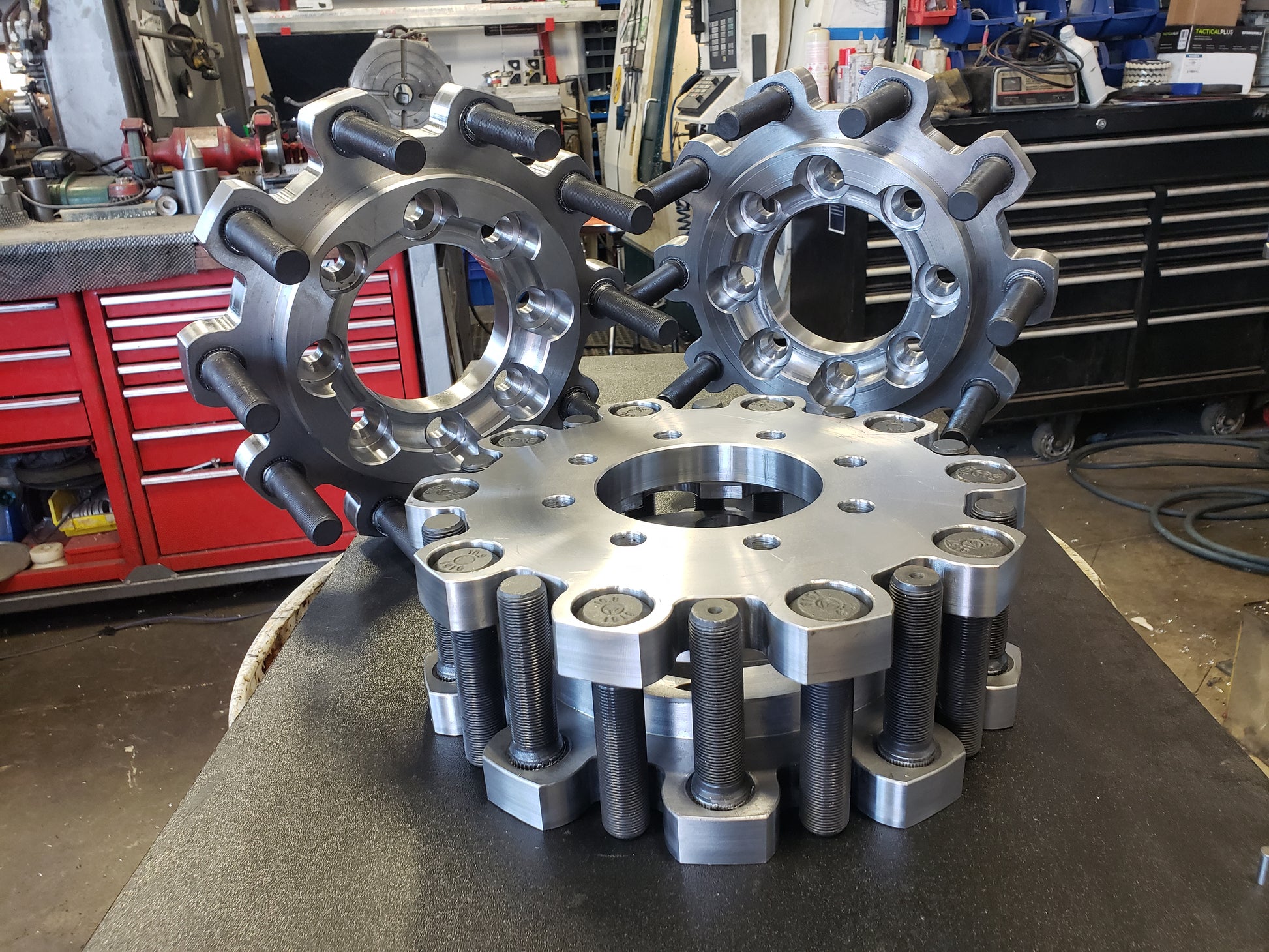

RAM - 8 TO 10 LUG WHEEL ADAPTERS 8X6.5" TO 10X285.75 MM STEEL Vehicle Bolt Pattern: 8x6.5" Vehicle Hub Bore: 121.3 MM Wheel Bolt Pattern: 10x285.75 MM Wheel Bore: 220.1 MM Thread Pitch: 22x1.5 Flange Thickness: 1" Hub center protrusion: Front 0.80" / dual wheels 1.45" Material : 1018 Steel Hardware: 10.9 Grade Finish: Raw Steel uncoated - Powder Coating Available on request Pressed In Studs & Lug Nuts Included
FORD - 8X200 MM TO 10X285.75 MM WHEEL ADAPTERS 8 TO 10 LUG STEEL Vehicle Bolt Pattern: 8x200MM Vehicle Hub Bore: 142 MM Wheel Bolt Pattern: 10x285.75 MM Wheel Bore: 220.1 MM Thread Pitch: 22x1.5 MM Thickness: 1" Hub center protrusion: Front 0.8" - Dual wheels 1.45" Material : 1018 Steel Hardware: 10.9 Grade Finish: Raw Steel uncoated - Powder Coating Available on request Pressed In Studs & Lug Nuts Included
--

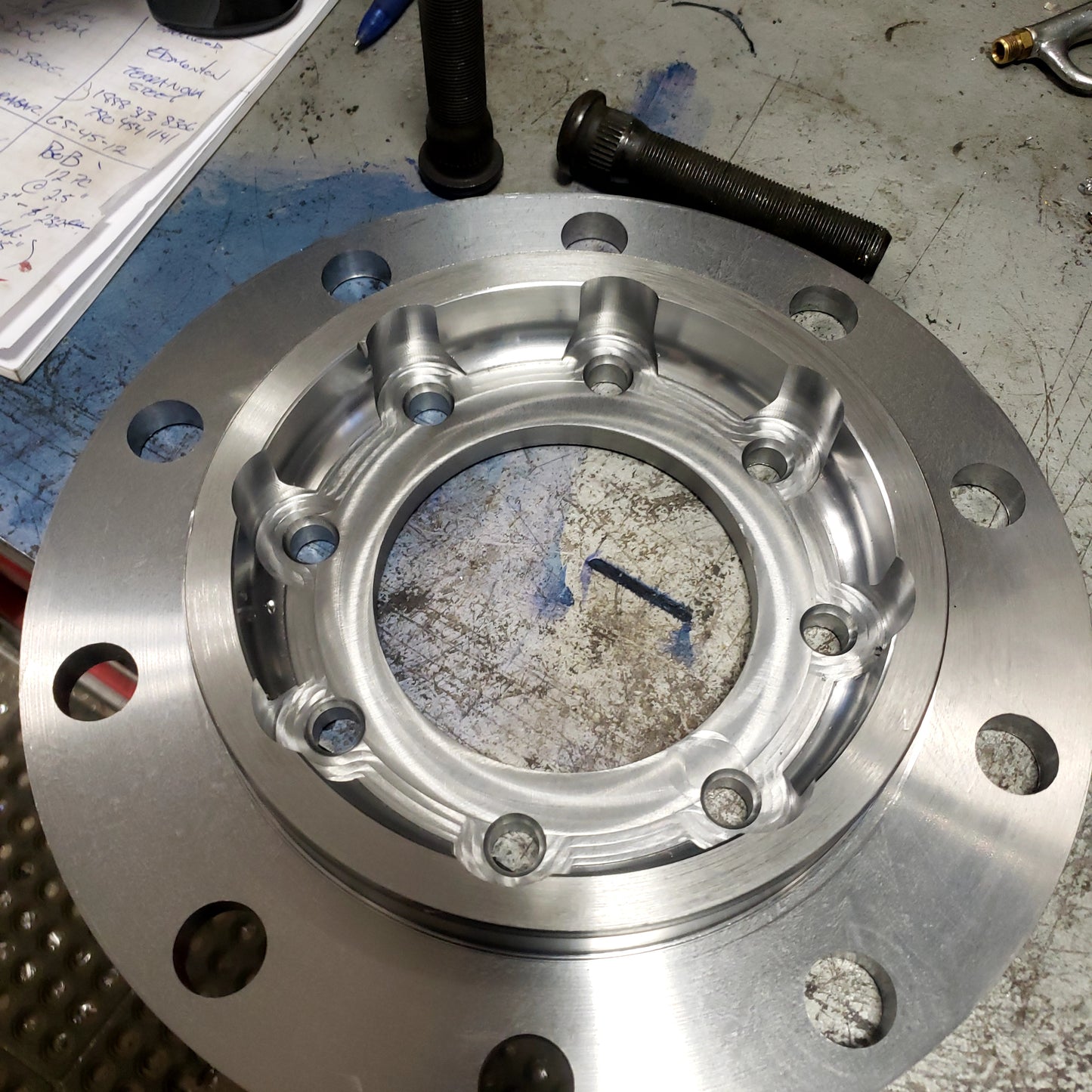

Steel wheel adapter 10-10 bolt 12.75" OD with 1" bolt flange and 0.8" hub center height for front axel position or super single 1.45" hub center height for rear wheel position to accomodate dual wheels bolt pattern 10x 285.75 mm hub pilot. adapters include 22x 1.5 mm studs and 33 mm lug nuts 10 Bolt to 10 Bolt adapter patterns for most trucks available Adapters are made to order - Custom sizes available
